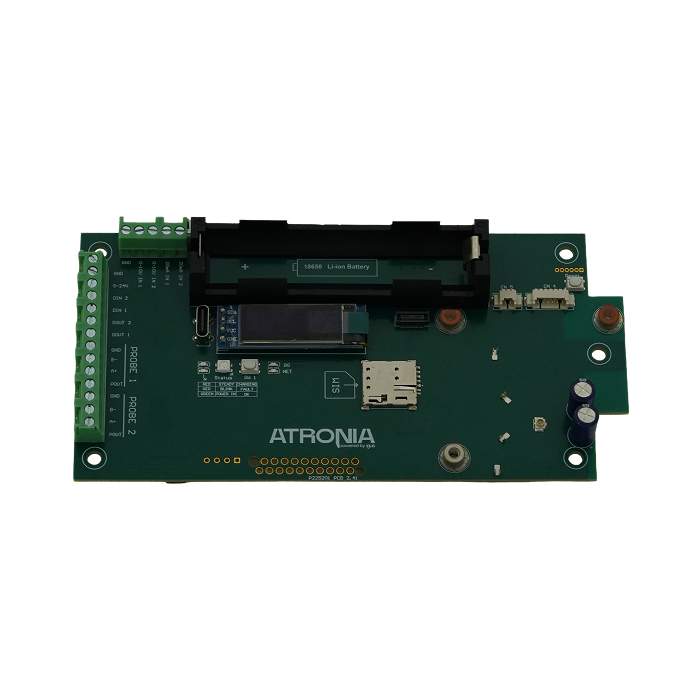

The ATRONIA SENSBLUE MONARCH BOARD is a ruggedised, low-power IoT controller board designed for cellular-connected remote sensing, monitoring and control. It pairs an Espressif ESP32-WROOM-32E microcontroller with a Quectel BG95-M3 modem, giving the device native Wi-Fi 802.11 b/g/n, Bluetooth 4.2 BR/EDR + BLE, LTE-M Cat.M1, NB-IoT Cat.NB1/NB2, EGPRS fallback and a multi-constellation GNSS receiver in a single compact package.
The SENSBLUE MONARCH BOARD is fully programmable through the Arduino IDE via the standard Espressif ESP32 core and a companion library (SENSBLUE MONARCH) that exposes every on-board peripheral through an idiomatic API. Hardware documentation and firmware sources are open under the MIT licence.
| Weight | 0,07 kg |
|---|---|
| Dimensions | 2 × 14,1 × 7 cm |
